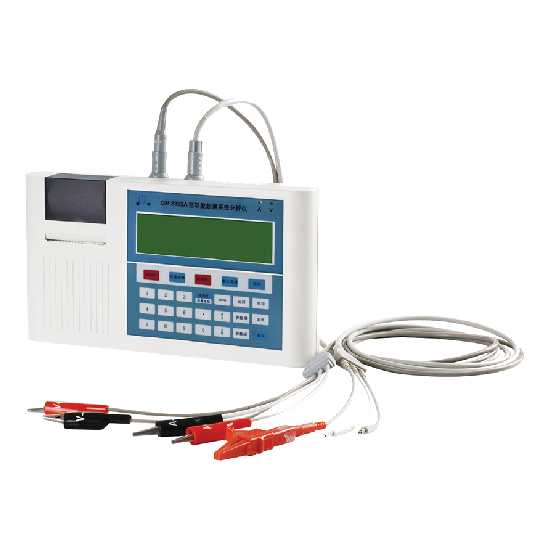

Dual Chamber Pacing System Analyzer
Dual chamber pacing System Analyzer application is used to assess electrical performance and placement of cardiac lead systems during implant of cardiac rhythm management devices
Pacing System Analysis
10 types of testing modes
One-key test design
High precision of pacing threshold testing
Exact adjustments of pacing parameters
Real-time ECG
Pacemaker Testing
One-key test of pacemaker basic parameters
Global waveforms of sensitivity test
Built-in printer, self-check and self-test are available
Technical Parameters
| Parameter | Range | Step |
| Basic Rate (ppm) | 31-180 (Dual chamber 31-90) | 1 |
| Pacing Interval (ms) | 333-1935 (Dual chamber 667-1935) | 1 |
| Max. Rate Limitation (ppm) | 100-180 (Only for dual-chamber DDD/VDD) | 1 |
| Pulse Amplitude (V) | 0.10-10.0 | 0.1 |
| Pulse Width (ms) | 0.05-2.50 | 0.01 |
| Sensing Sensitivity (mV) | 0.5-10.0 | 0.25 |
| Refractory Period (ms) | 200-500 | 25 |
| A-V Interval (ms) | 50-300 (Only for dual-chamber pacing mode) | 1 |
| Hysteresis (ms) | 0-400 | 1 |
| Quick Stimulate Rate (ppm) | 31-800 (Dual chamber 31-350) | 1 |
| Pacing Mode | VVI/VVT/VOO/ AAI/AAT | / |
| AOO/DDD/DVI/DOO/VDD |
Ordering Information
| Catalogue No. | QM2352A |
Notice: Please contact the sales for detailed information before placing the order.
