Rayband™ Radial Artery Compression Tourniquet
Rayband™ Radial Artery Compression Tourniquet Details
Radial Compression Device Description

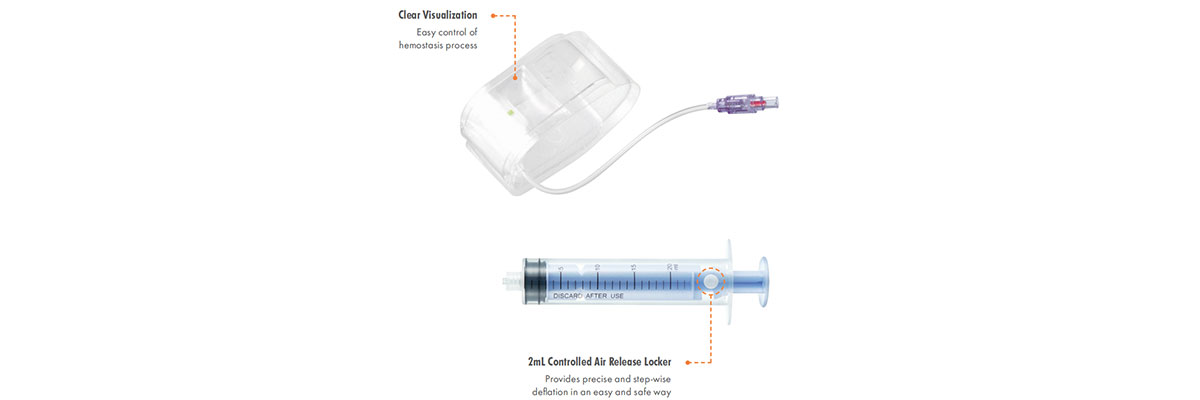

Radial Compression Device Features
• Specially designed for radial artery hemostasis of post percutaneous puncture.
• Transparent material ensures clear visual control of hemostasis procedure.
• Unilateral valve connected to the balloon allows of accurate pressure adjustment to provide personalized hemostasis procedure.
• Adjustable band length is convenient to fit for patient's comfort.
• Stopcock on syringe helps with easy and accurate deflation.
Product Benefits
• Easy control of hemostasis process
• Convenient and safe deflation
• Comfortable hemostasis for patients
Product Ranges

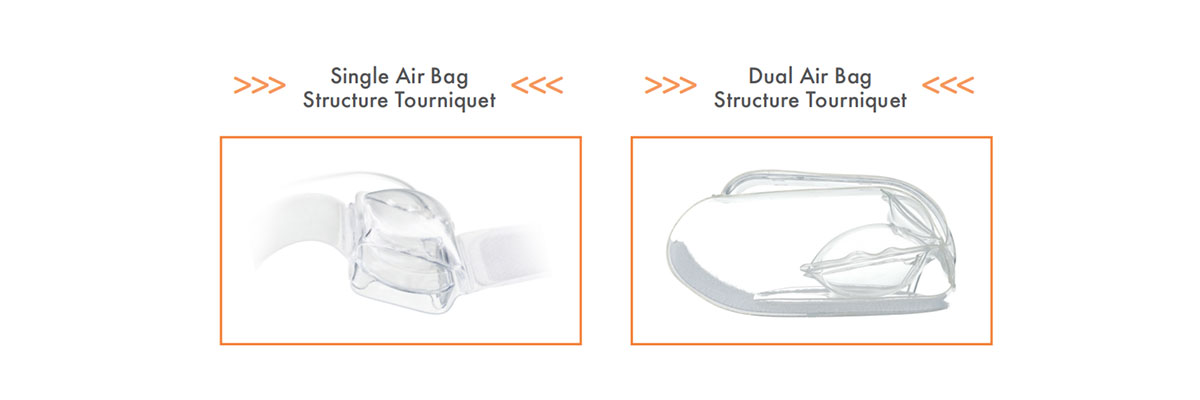

• Air bag structure: single / dual
• Max. air volume: 18ml / 20ml
• Connector: Lock type / Common
• Bandage length:
21cm/24.5cm/27cm/29cm

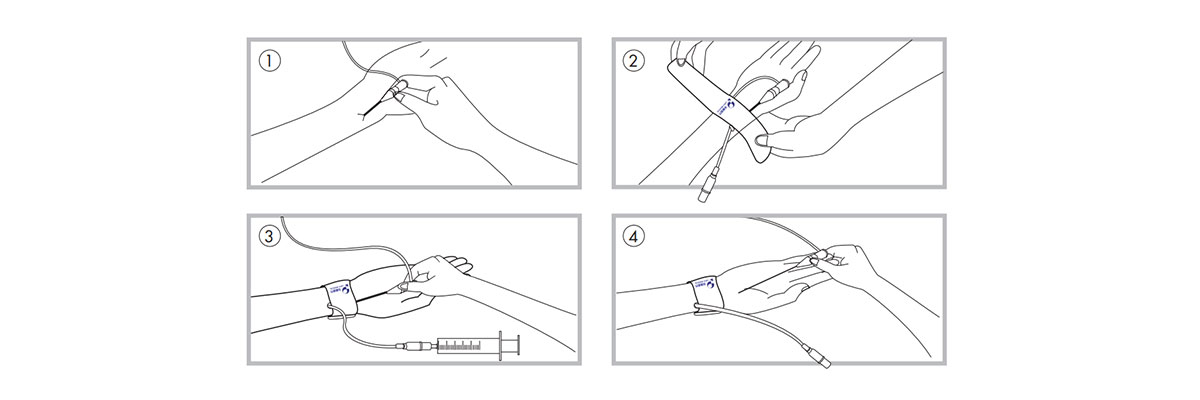

Direction for Use
Ordering Information
| Catalogue No. | Balloon Structure | Bandage Length (cm) | Max Injection Air Volume (mL) | Connector |
| LPYP15S | 1 | 21 | 15 | Push-pull |
| LPYP15 | 1 | 24.5 | 15 | Push-pull |
| LPYP15L | 1 | 27 | 15 | Push-pull |
| LPYP15XL | 1 | 29 | 15 | Push-pull |
| LPYP20S | 2 | 21 | 20 | Push-pull |
| LPYP20 | 2 | 24.5 | 20 | Push-pull |
| LPYP20L | 2 | 27 | 20 | Push-pull |
| LPYP20XL | 2 | 29 | 20 | Push-pull |
| YPR15S | 1 | 21 | 15 | Luer |
| YPR15 | 1 | 24.5 | 15 | Luer |
| YPR15L | 1 | 27 | 15 | Luer |
| YPR15XL | 1 | 29 | 15 | Luer |
| YPR20S | 2 | 21 | 20 | Luer |
| YPR20 | 2 | 24.5 | 20 | Luer |
| YPR20L | 2 | 27 | 20 | Luer |
| YPR20XL | 2 | 29 | 20 | Luer |
*Product registration and availability vary by country. For more information on product availability, please contact us here.
