Ultraskin™ Hydrophilic Guide Wire

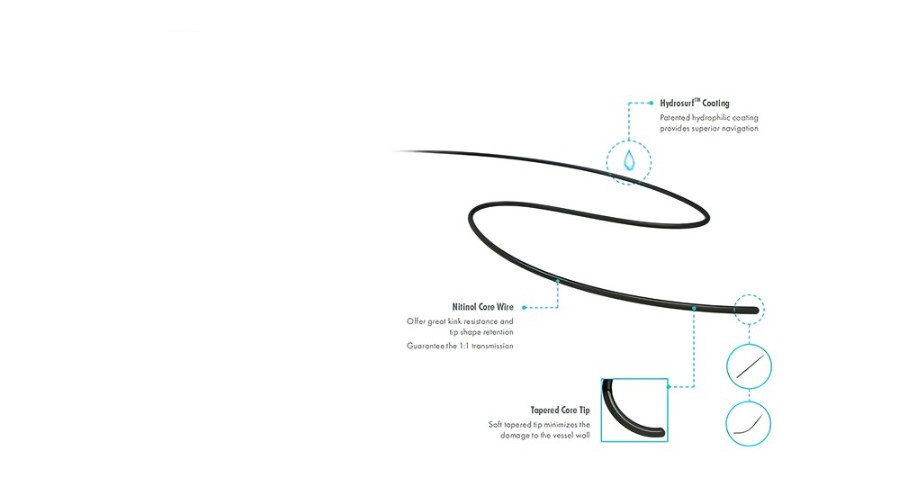

• Nitinol core wire guarantees great tip shape retention, outstanding kink resistance and 1:1 torque control.
• PU Jacket incorporated with Tungsten carbide provides highly radiopacity.
• Super smooth hydrophilic coating reduces friction, and provides excellent navigation in and out the catheter.

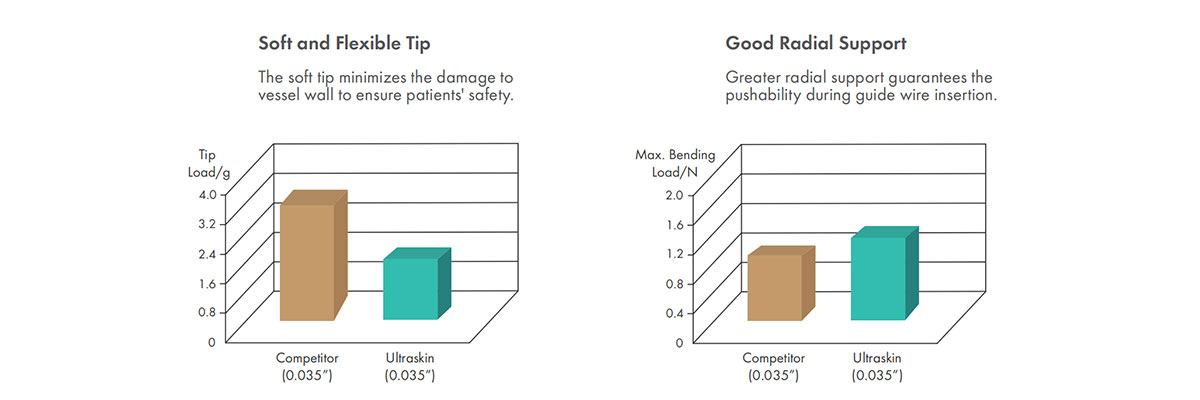

• Soft tapered tip increases distal flexibility, contributes to smooth vessel insertion, and minimizes the risk of trauma.
Ultraskin™ Hydrophilic Guide Wire Details
Product Description

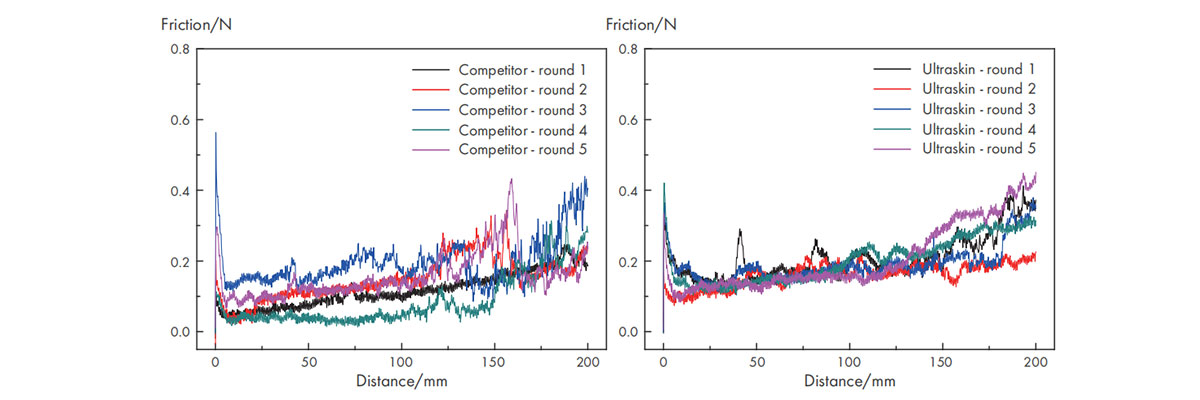

Super Smooth and Stable Hydrophilic Coating
The hydrophilic coating contributes to excellent navigation, which is shown by the uniform and low friction after multi-times tests.
Product Features
• Nitinol core wire
• Soft tapered tip
• Polyurethane jacket with tungsten carbide
• Hydrophilic coating
• 1:1 transmissiontr
Product Benefits
• Excellent kink resistance
• Good tip shape retention
• Enhanced visibility
• Outstanding pushability
• Minimized damage to vessel wall
• Super smooth insertion
Product Ranges
• Outer diameter: 0.018"/0.032"/0.035"
• Length: 150/180/260cm
• Tip curve: straight/135°angled/reshapable
Ordering Information
| Catalogue No. | Outer Diameter | Guide Wire Length (cm) | Distal Curve | Note |
| SD-S18150 | 0.018” | 150 | Straight | Standard |
| SD-A18150 | 0.018” | 150 | 135°Angled | Standard |
| SD-S32150 | 0.032” | 150 | Straight | Standard |
| SD-A32150 | 0.032” | 150 | 135°Angled | Standard |
| SD-S32180 | 0.032” | 180 | Straight | Standard |
| SD-A32180 | 0.032” | 180 | 135°Angled | Standard |
| SD-S32260 | 0.032” | 260 | Straight | Standard |
| SD-A32260 | 0.032” | 260 | 135° Angled | Standard |
| SD-S35150 | 0.035” | 150 | Straight | Standard |
| SD-A35150 | 0.035” | 150 | 135° Angled | Standard |
| SD-S35180 | 0.035” | 180 | Straight | Standard |
| SD-A35180 | 0.035” | 180 | 135° Angled | Standard |
| SD-S35260 | 0.035” | 260 | Straight | Standard |
| SD-A35260 | 0.035” | 260 | 135° Angled | Standard |
| SP-S35150 | 0.035” | 150 | Straight | Reshapable Tip |
| SP-A35150 | 0.035” | 150 | 135° Angled | Reshapable Tip |
| SP-S35180 | 0.035” | 180 | Straight | Reshapable Tip |
| SP-A35180 | 0.035” | 180 | 135° Angled | Reshapable Tip |
| ST-S35150 | 0.035” | 150 | Straight | Stiff Shaft |
| ST-A35150 | 0.035” | 150 | 135° Angled | Stiff Shaft |
*Product registration and availability vary by country. For more information on product availability, please contact us here.
