Orien Guiding Catheter

Orien Guiding Catheter

• Soft and flexible tip • Flat-wire-braided middle layer • Smooth PTFE internal wall • Large lumen size
Orien Guiding Catheter
Orien Guiding Catheter
Enquire Now


Orien Guiding Catheter Details

Product Description

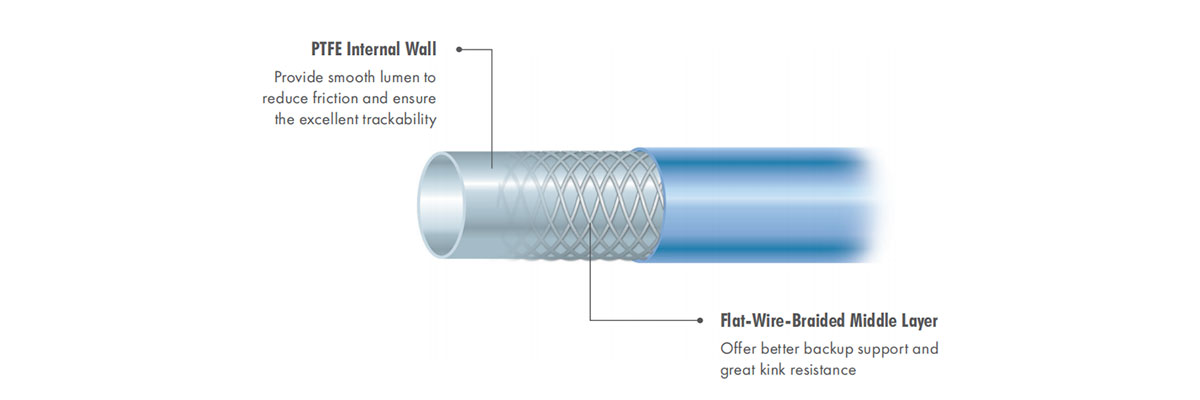

Guide Catheter



Product Features

• Flat wire braided middle layer offers outstanding flexibility and excellent kink resistance.

• Robust secondary curve provides great backup support and curve retention.

• Soft and flexible tip minimize the damage to the vessel wall.

• PTFE internal wall provides smooth lumen to ensure the excellent trackability.

• Large lumen guarantees the good performance for kissing balloon.


Product Benefits

• Outstanding trackability

• Excellent kink resistance

• Minimized damage to vessel wall

• Great backup support


Product Ranges

• Catheter O.D.: 5F / 6F / 7F

• Catheter length: 100cm

• Curve type:

 Left coronary curves

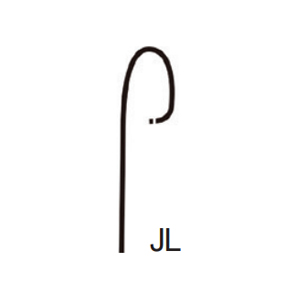

 Judkins Left

 Amplatz Left

 Extra Backup

• Right coronary curves:

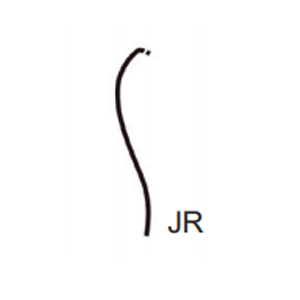

 Judkins Right

 Amplatz Right


Ordering Information

Right Coronary Curves
Curve TypeCatalogue No.Distal End
Shape		Catheter
O.D.		Catheter
I.D.		Length
(cm)
Judkins
Right		CL5JR35JR 3.55F0.056”
100JR
CL5JR40JR 4.0
CL6JR35JR 3.56F0.070”
CL6JR40JR 4.0
CL7JR35JR 3.57F0.078”
CL7JR40JR 4.0
Amplatz RightCL5AR10AR 1.05F0.056”
100AR
CL5AR20AR 2.0
CL6AR10AR 1.06F0.070”
CL6AR20AR 2.0
CL7AR10AR 1.07F0.078”
CL7AR20AR 2.0


Left Coronary Curves
Curve TypeCatalogue No.Distal End
Shape
Catheter
O.D.
Catheter
I.D.
Length  (cm)
Judkins  LeftCL5JL35JL 3.55F0.056”100JL
CL5JL40JL 4.0
CL5JL45*JL 4.5
CL5JL50*JL 5.0
CL6JL35JL 3.55F0.056”
CL6JL40JL 4.0
CL6JL45*JL 4.5
CL6JL50*JL 5.0
CL7JL35JL 3.55F0.056”
CL7JL40JL 4.0
CL7JL45*JL 4.5
CL7JL50*JL 5.0
Amplatz LeftCL5AL075AL 0.755F0.056”100AL
CL5AL10AL 1.0
CL5AL20AL 2.0
CL6AL075AL 0.756F0.070”
CL6AL10AL 1.0
CL6AL20AL 2.0
CL7AL075AL 0.757F0.078”
CL7AL10AL 1.0
CL7AL20AL 2.0
Extra  BackupCL5XB30XB 3.05F0.056”100



XB

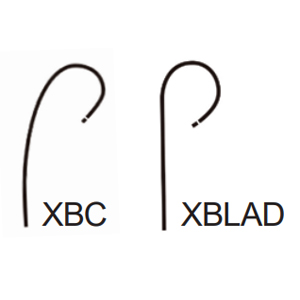

XBC XBLAD


CL5XB35XB 3.5
CL5XB40XB 4.0
CL6XB30XB 3.06F0.070”
CL6XB35XB 3.5
CL6XB40XB 4.0
CL6XBC35XBC 3.5
CL6XBLAD35XBLAD 3.5
CL7XB30XB 3.07F0.078”
CL7XB35XB 3.5
CL7XB40XB 4.0
CL7XBLAD35XBLAD 3.5

*Product registration and availability vary by country. For more information on product availability, please contact us here.
