Internal Spinal Fixation System
This posterior implement is mainly used to cure uni-segment or multi-segment spine fracture; uni-segment and multi-segment spine instability; and recessive spinal diseases.
Multi / single-axis screws and long-arm screws.
Self-explaining standard instruments.
Offers low profile, polyaxial screws providing excellent angulation in all planes.
Application: For posterior thoracolumbar internal fixationcervical
U-shape Monoaxial Screw
Spec.: Slot width*Diameter* Length
5.5*Φ4.5*25mm-50mm
5.5*Φ5.0*25mm-50mm
5.5*Φ5.5*30mm-60mm
5.5*Φ6.0*30mm-60mm
5.5*Φ6.5*30mm-60mm
5.5*Φ7.0*30mm-60mm
Material: Titanium Alloy
U-shape Monoaxial Reduction Screw
Spec.: Slot width*Diameter* Length
5.5*Φ4.5*25mm-50mm
5.5*Φ5.0*25mm-50mm
5.5*Φ5.5*30mm-60mm
5.5*Φ6.0*30mm-60mm
5.5*Φ6.5*30mm-60mm
5.5*Φ7.0*30mm-60mm
Material: Titanium Alloy
U-shape Polyaxial Screw
Spec.: Slot width*Diameter*Length
5.5*Φ4.5*25mm-50mm
5.5*Φ5.0*25mm-50mm
5.5*Φ5.5*30mm-60mm
5.5*Φ6.0*30mm-60mm
5.5*Φ6.5*30mm-60mm
5.5*Φ7.0*30mm-60mm
Material: Titanium Alloy
U-shape Polyaxial Reduction Screw
Spec.: Slot width*Diameter*Length
5.5*Φ4.5*25mm-50mm
5.5*Φ5.0*25mm-50mm
5.5*Φ5.5*30mm-60mm
5.5*Φ6.0*30mm-60mm
5.5*Φ6.5*30mm-60mm
5.5*Φ7.0*30mm-60mm
Material: Titanium Alloy
Connecting Rod
Spec.: Φ5.5*160mm-450mm
Material: Titanium Alloy
Transverse Connecting Set I
Spec.: Φ5.5*50mm-80mm
Material: Titanium Alloy

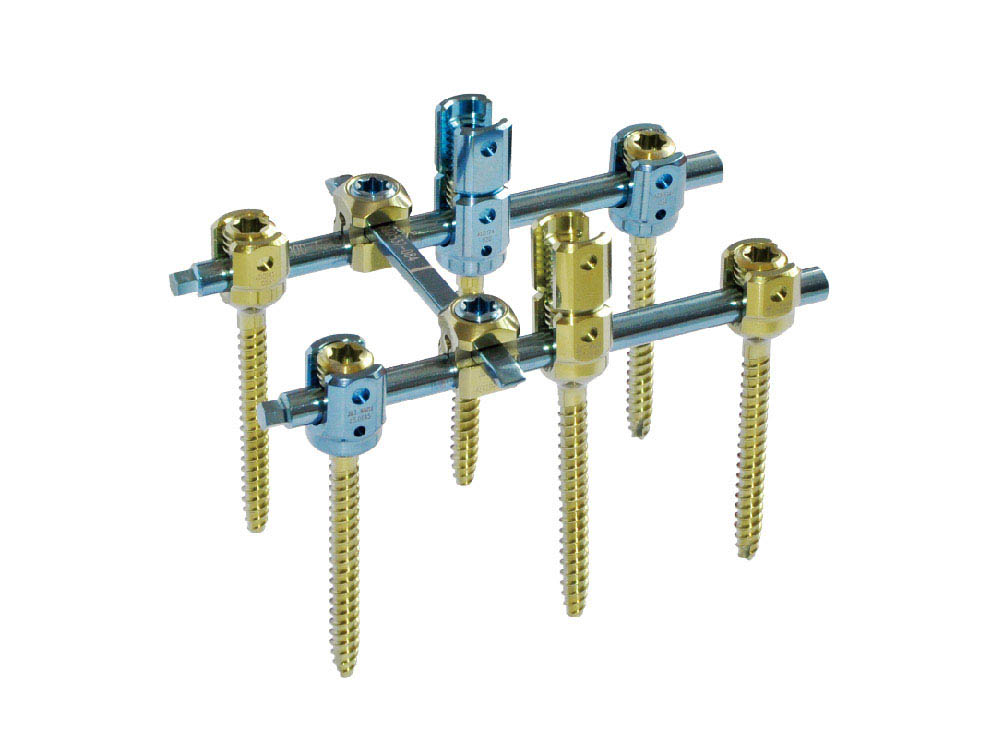

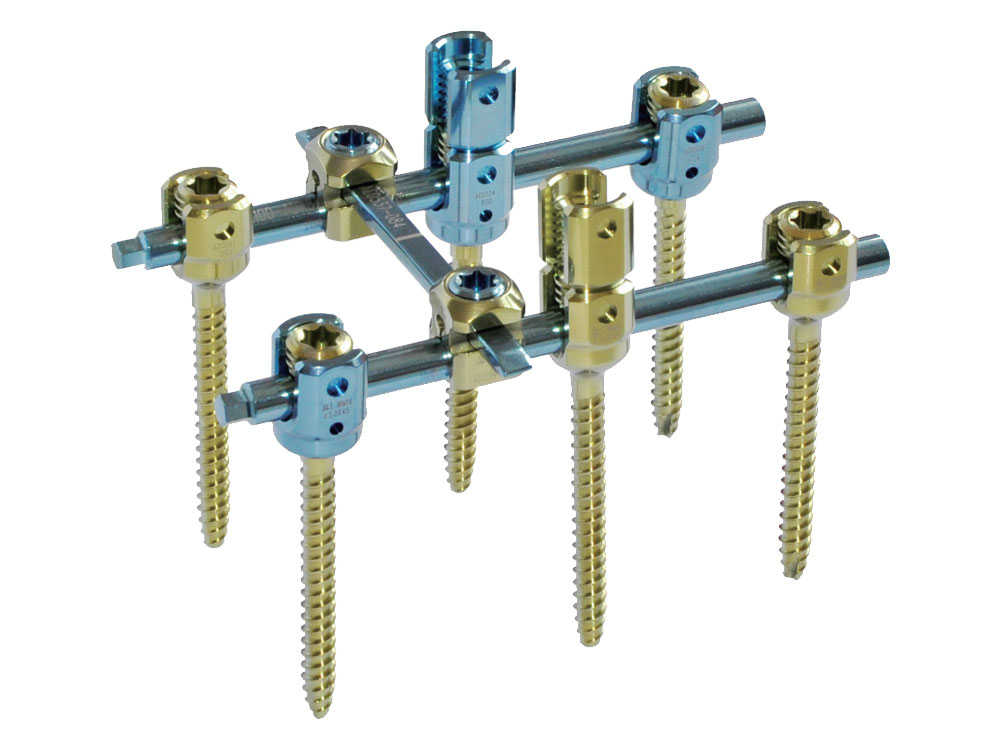

Internal Spinal Fixation System (Ⅶ)
Diameter: Ф5.5
Length: 40mm-90mm, 5mm/increment
90mm-130mm, 10mm/increment
| Diameter | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 |
| Length | 25 | |||||
| 30 | 30 | 30 | 30 | 30 | 30 | |
| 35 | 35 | 35 | 35 | 35 | 35 | |
| 40 | 40 | 40 | 40 | 40 | 40 | |
| 45 | 45 | 45 | 45 | 45 | ||
| 50 | 50 | 50 | 50 | |||
| 55 | 55 | 55 | 55 | |||
| Mark: The size in red can use with bone cement. | ||||||
Application: For posterior thoracolumbar internal fixation
U-shape Monoaxial Screw
Spec.: Slot width*Diameter*Length
6.0*Φ4.5*25mm-45mm
6.0*Φ5.0*30mm-45mm
6.0*Φ5.5*35mm-50mm
6.0*Φ6.0*35mm-50mm
6.0*Φ6.5*35mm-55mm
6.0*Φ7.0*30mm-50mm
6.0*Φ7.5*25mm-55mm
Material: Titanium Alloy
U-shape Monoaxial Reduction Screw
Spec.: Slot width*Diameter*Length
6.0*Φ4.0*25mm-45mm
6.0*Φ4.5*25mm-45mm
6.0*Φ5.0*30mm-45mm
6.0*Φ5.5*35mm-50mm
6.0*Φ6.0*35mm-50mm
6.0*Φ6.5*35mm-55mm
6.0*Φ7.0*30mm-40mm
6.0*Φ7.5*25mm-55m
Material: Titanium Alloy
U-shape Polyaxial Screw
Spec.: Slot width*Diameter*Length
6.0*4.0*25mm-45mm
6.0*4.5*25mm-45mm
6.0*5.0*30mm-50mm
6.0*5.5*30mm-50mm
6.0*6.0*30mm-55mm
6.0*6.5*30mm-55mm
6.0*7.0*30mm-55mm
Material: Titanium Alloy
U-shape Polyaxial Reduction Screw
Spec.: Slot width*Diameter*Length
6.0*Φ4.0*25mm-45mm
6.0*Φ4.5*25mm-45mm
6.0*Φ5.0*30mm-50mm
6.0*Φ5.5*30mm-50mm
6.0*Φ6.0*30mm-55mm
6.0*Φ6.5*30mm-55mm
6.0*Φ7.0*30mm-55mm
Material: Titanium Alloy
Connecting Rod
Spec.: Φ6.0*40mm-450mm
Material: Titanium Alloy
Transverse Connecting Set I
Spec.: Φ6.0*60mm-80mm
Material: Titanium Alloy
*Product registration and availability vary by country. For more information on product availability, please contact us here.
