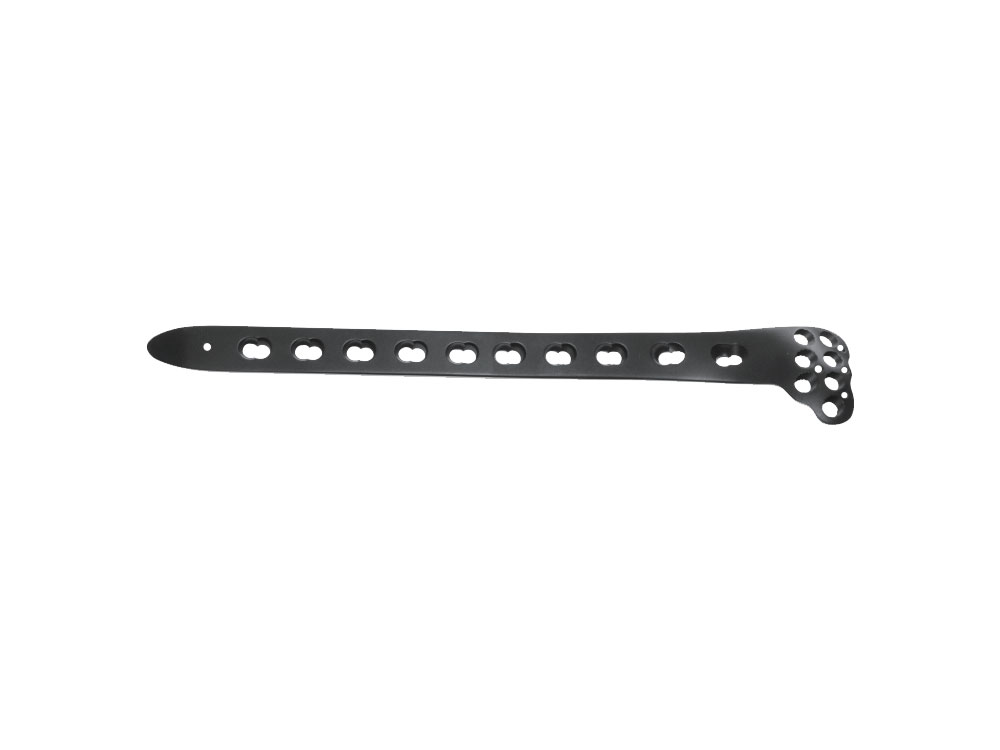

3.5 mm Proximal Lateral Tibial Locking Plate, Combined-lock

Application: For proximal lateral tibial fracture

Spec.: 113*4 holes - 273*14 holes (L,R)

Material: Titanium

Matching Screw:

Φ3.5 Cortical Screw;

Φ3.5 Cancellous Screw;

Φ4.0 Cancellous Screw;

Φ3.5 Self-tapping Locking Screw

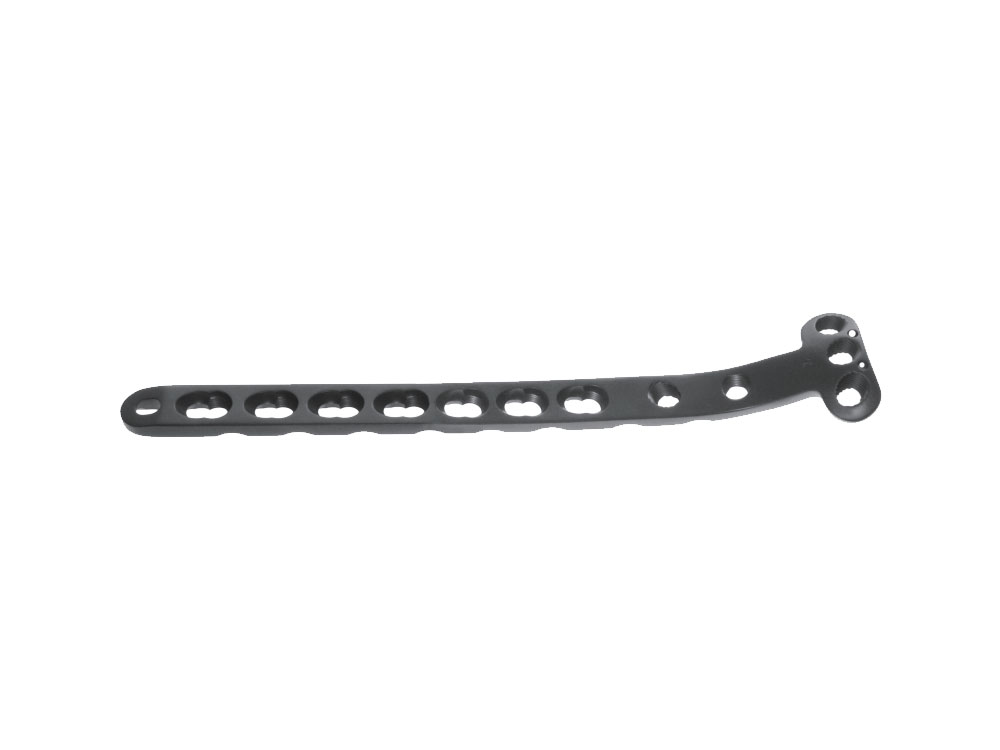

3.5 mm Proximal Medial Tibial Locking Plate, Combined-lock

Application: For proximal medial tibial fracture

Spec.: 106*5 holes - 236*15 holes (L,R)

Material: Titanium

Matching Screw:

Φ3.5 Cortical Screw;

Φ3.5 Cancellous Screw;

Φ4.0 Cancellous Screw;

Φ3.5 Self-tapping Locking Screw

3.5 mm Proximal Posterior Medial Tibial Locking Plate, Combined-lock

Application: For fracture of proximal tibia

Spec.: 73*2 holes - 169*8 holes (L,R)

Material: Titanium

Matching Screw:

Φ3.5 Cortical Screw;

Φ3.5 Cancellous Screw;

Φ4.0 Cancellous Screw;

Φ3.5 Self-tapping Locking Screw

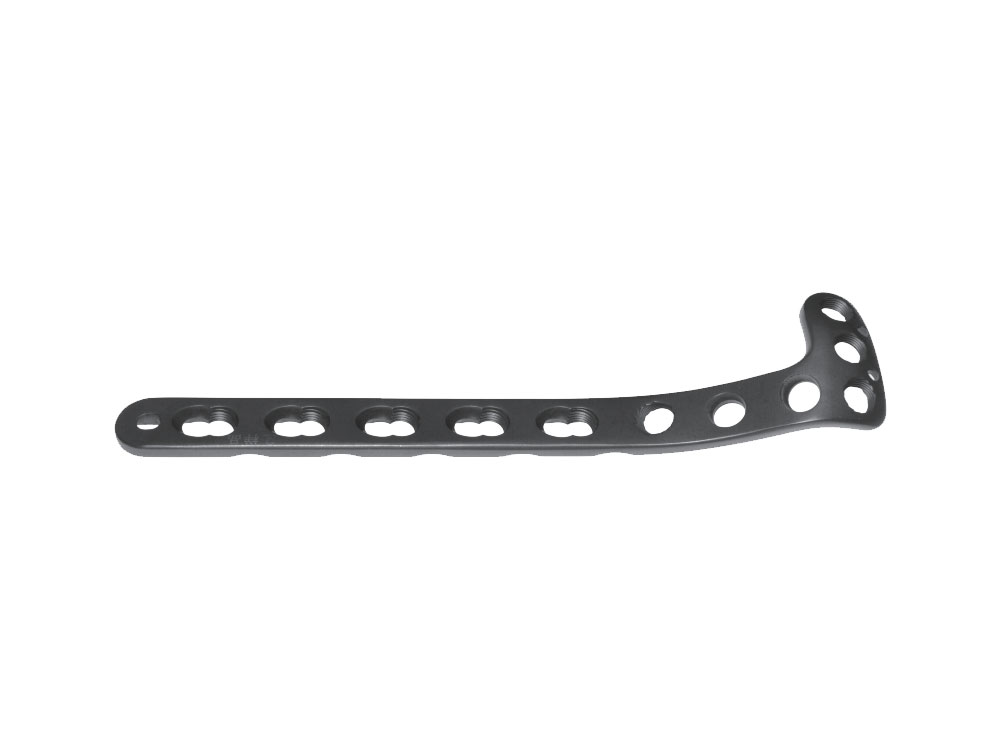

Proximal Tibial Locking Plate, Combined-lock

Application: For fracture of proximal tibia

Spec.: 82mm*4 holes -298mm*16 holes (L,R)

Material: Titanium

Matching Screw:

Φ5.0 Self- Tapping Locking Screw;

Φ4.5 Cortical Screw;

Φ6.5 Cancellous Screw

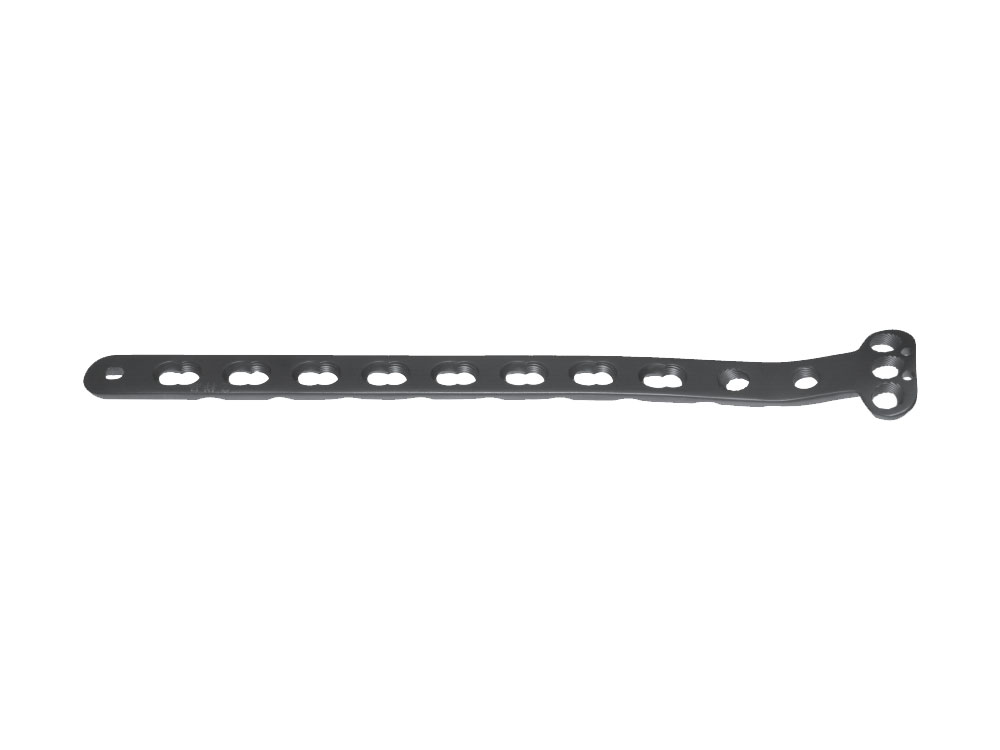

Proximal Tibial Medial Locking Plate, Combined-lock

Application: For fracture of proximal medial tibia

Spec.: 106mm *4 holes - 322mm *16 holes (L,R)

Material: Titanium

Matching Screw:

Φ5.0 Self-tapping Locking Screw;

Φ4.5 Cortical screw

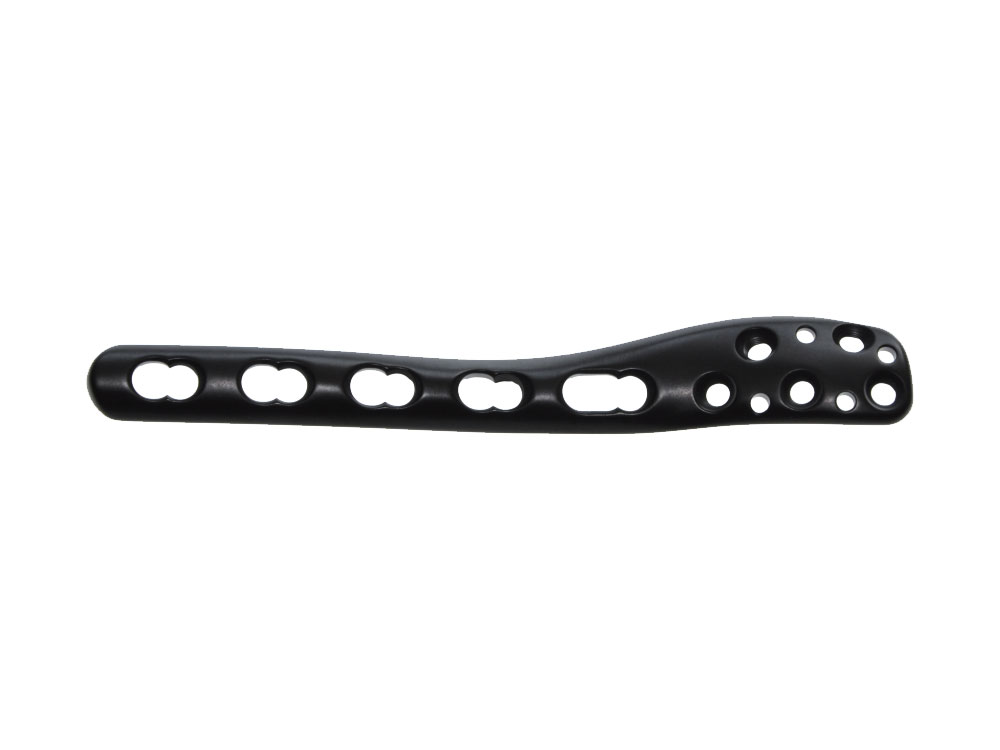

Distal Lateral Fibular Locking Plate (II), Combined-lock

Application: For distal fibular fracture

Spec.: 65*3 holes - 205*13holes (L,R)

Material: Titanium

Matching Screw: Head:

Φ2.7 Self-tapping Locking Screw;

Φ2.7 Cortical screw

Shaft:

Φ3.5 Self-tapping Locking Screw;

Φ3.5 Cortical screws

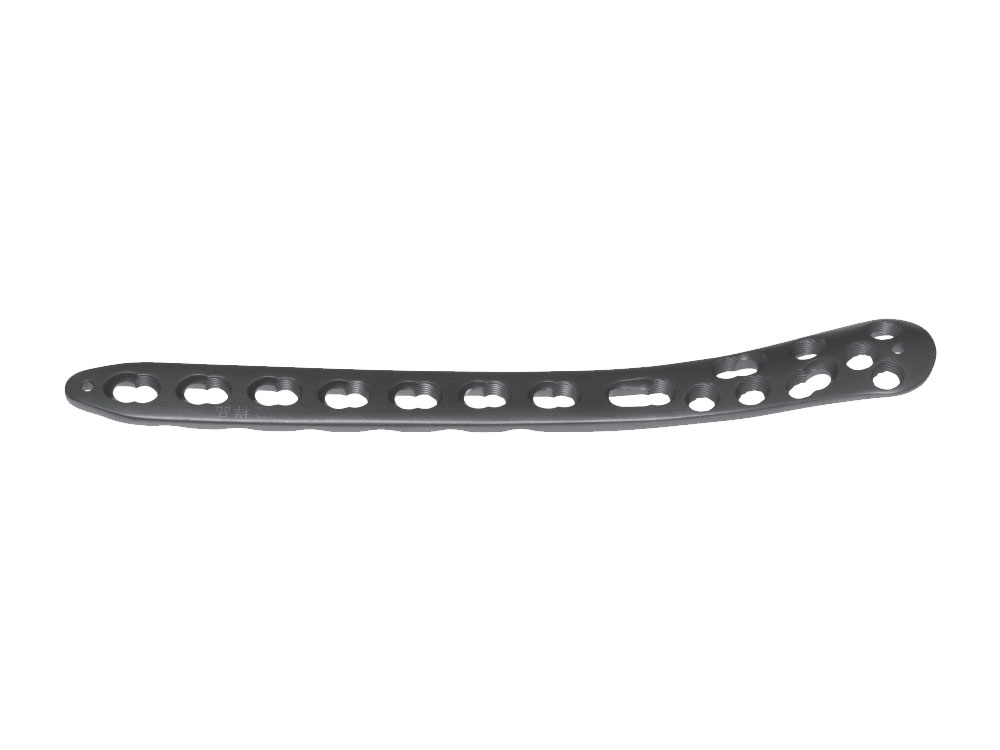

Distal Tibial Medial Locking Plate (IV), Combined-lock

Application: For fracture of distal tibia

Spec.: 109mm*4 holes -239mm* 14 holes (L,R)

Material: Titanium

Matching Screw:

Φ3.5 Cortical Screw;

Φ3.5 Cancellous Screw;

Φ4.0 Cancellous Screw;

Φ3.5 Self-tapping Locking Screw

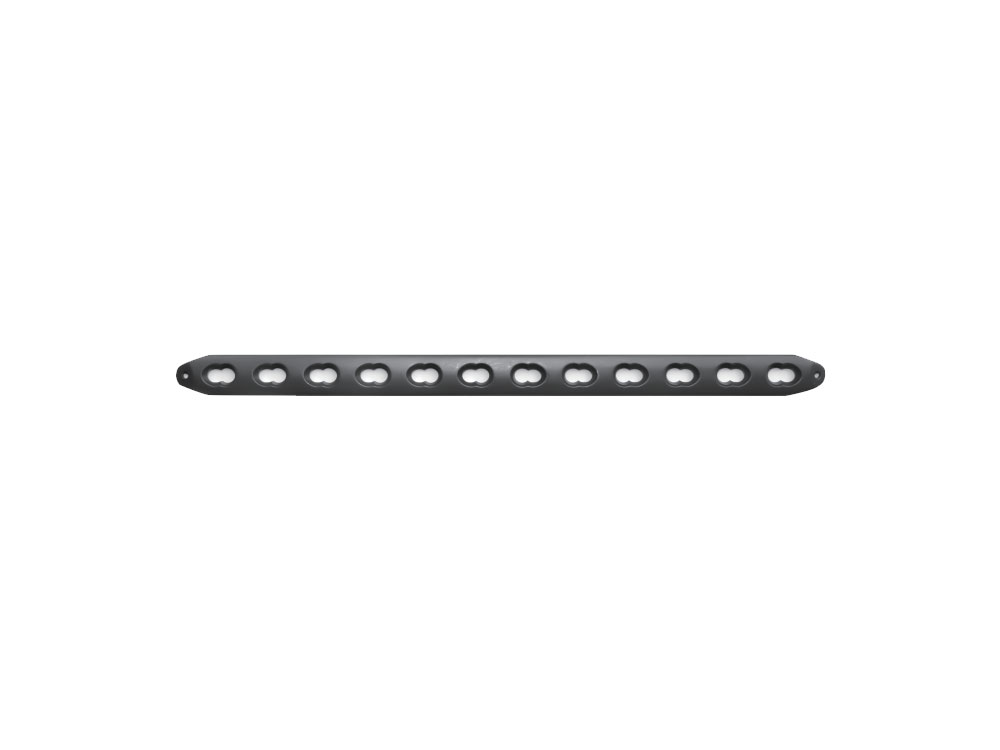

LC-LCP (III) (Tibia), Combined-lock

Application: For tibia diaphysis fracture

Spec.: 88mm*4 holes - 268mm*14 holes

Material: Titanium

Matching screw:

Φ5.0 Self-tapping Locking Screw;

Φ4.5 Cortical Screw

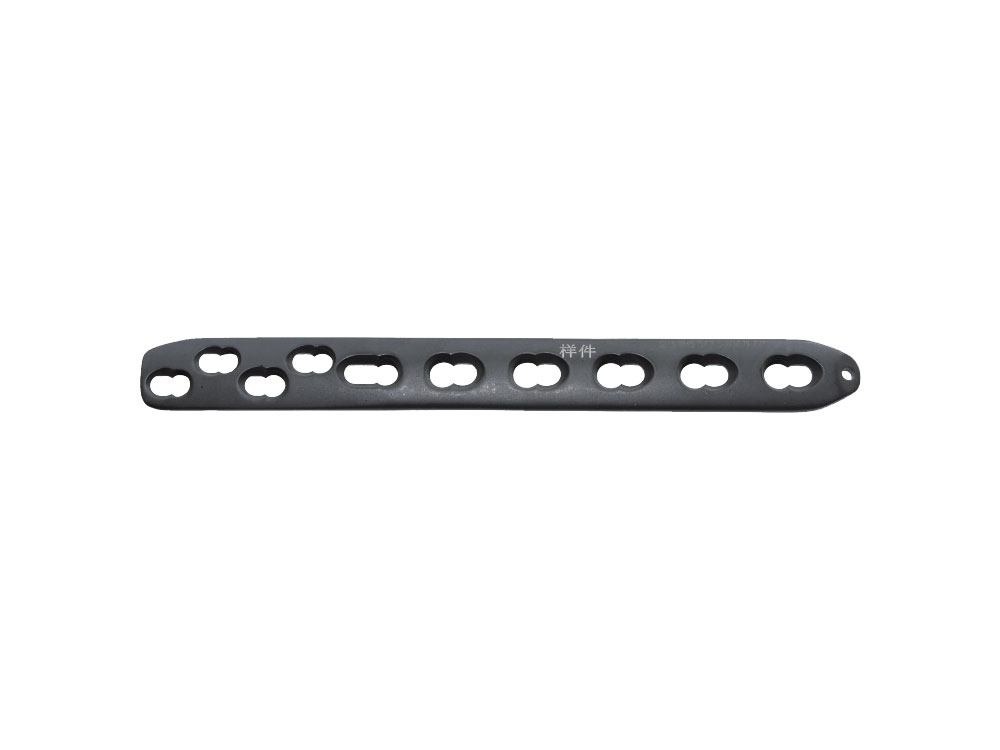

LC-LCP (Tibial Metaphysis), Combined-lock

Application: For tibial metaphyseal fracture

Spec.: 118 mm*3 holes -298mm*13 holes

Material: Titanium

Matching Screw:

Φ3.5 Cortical Screw;

Φ4.5 Cortical Screw;

Φ3.5 Cancellous Screw;

Φ4.0 Cancellous Screw;

Φ3.5/Φ5.0 Self-tapping Locking Screw

*Product registration and availability vary by country. For more information on product availability, please contact us here.
