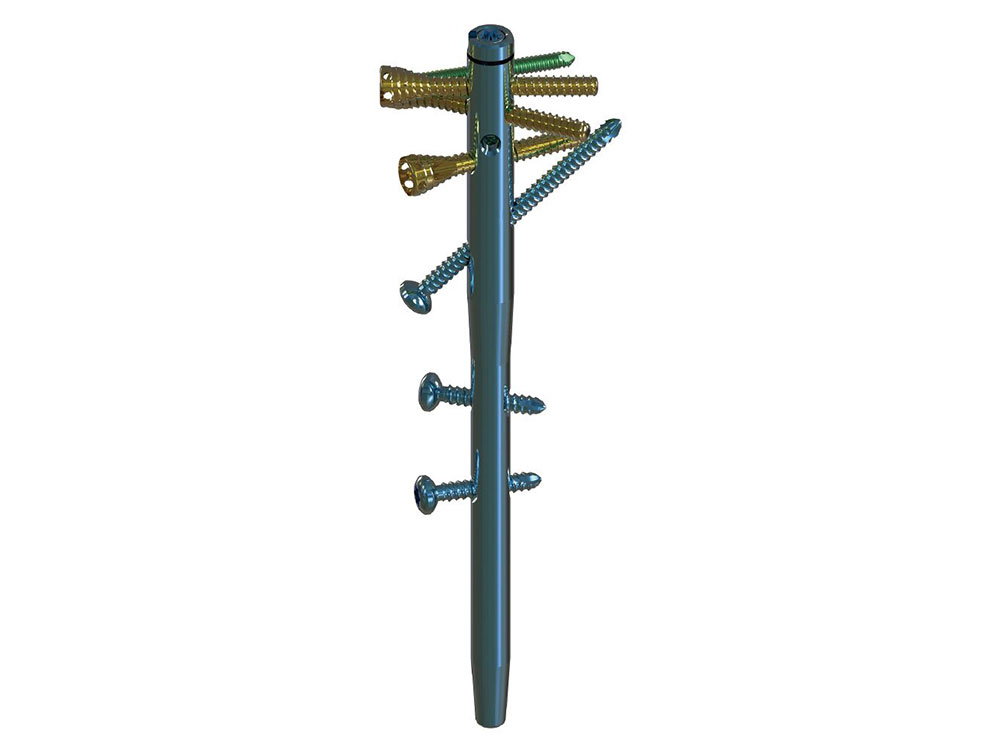

Humeral Interlocking Nail

Proximal Multiloc Screws (4.5mm) (gold)

• Flat head design reduces the risk of screw penetration.

• 4 suture holes in the tail can stabilize the attachment of the rotator cuff muscles.

• Countersunk screws can reduce the implant protrusion.

• Use with 3.5mm (green) locking screw self-tapping screws (screw in screw) can improve stability.

Multidimensional Fixation Of Proximal Humeral Interlocking Screw

Proximal locking hole can maintain the angular stability and reduce the screw withdrawal; the multi-plane interlocking option can reduce the implant swing.

Humeral interlocking screw(4.0mm) (Ascending screw)

Choice of ascending screw provides support for the medial calcar region.

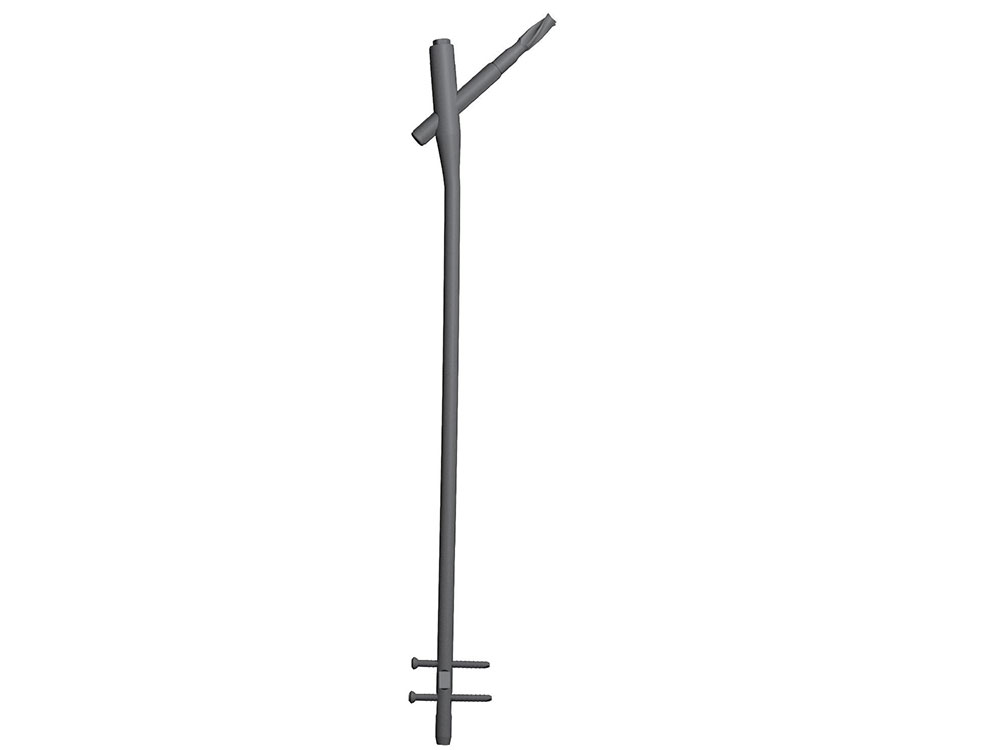

Proximal Femoral Nail Anti-rotation (PFNA)

Application: Used in a variety of proximal fractures, such as:

1. Sub-trochanteric Fractures;

2. Inter-trochanteric Fractures.

Diameter: Φ9.5-Φ12.0

Length: 170mm; 200mm; 240mm; 320mm; 340mm;

360mm; 380mm; 400mm; 420mm; 440mm

Material: Titanium Alloy

Matching Locking Bolt: Φ4.8*25mm - Φ4.8*85mm

PFNA Blade: Φ10.4*75mm - Φ10.4*120mm

Material: Titanium Alloy

End Cap

Spec: M10*(16,21,40)

Material: Titanium Alloy

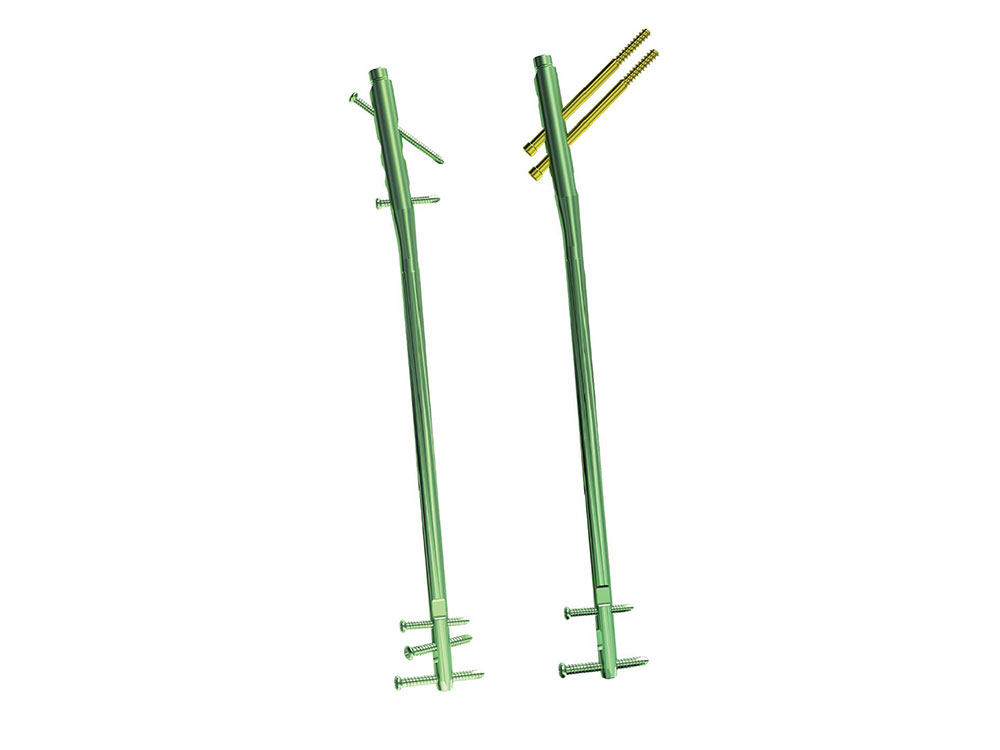

Femoral Reconstruction Interlocking Nail (II)

Application: Used in a variety of femoral fractures:

1. Sub-trochanteric fractures;

2. Inter-trochanteric fractures;

3. Nonunions;

4. Femoral shaft fractures.

Diameter: Φ9.5~Φ12.0

Length: 320mm-440mm

Material: Titanium Alloy

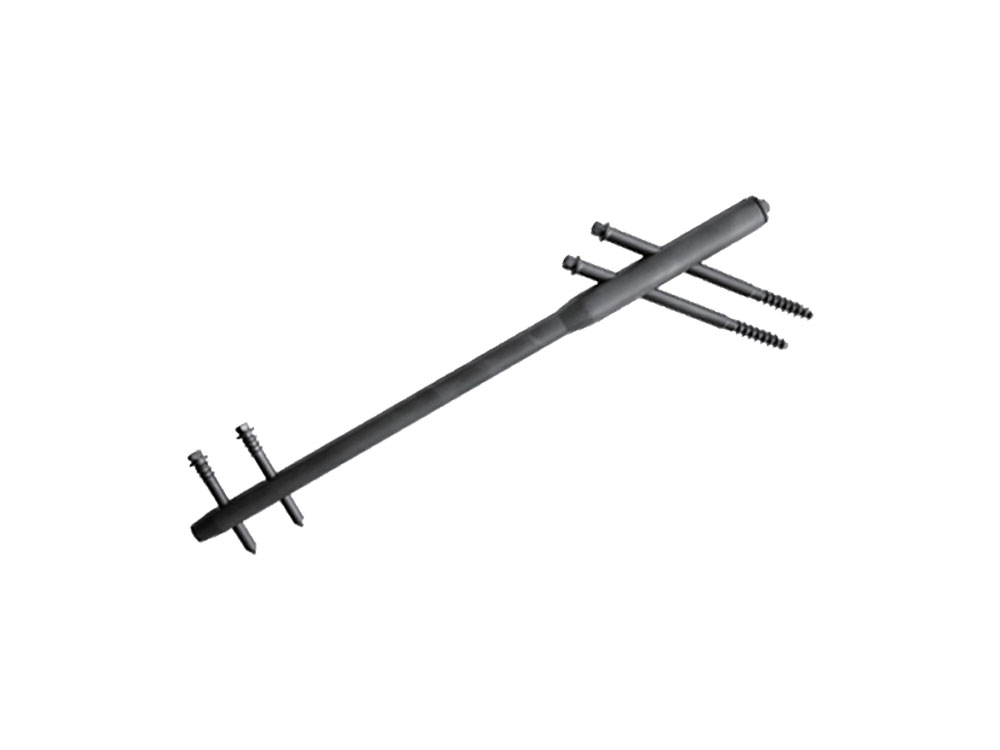

Femoral Reconstruction Interlocking Nail (Standard Gamma Nail)

Application: Used in a variety of proximal fractures, such as:

1. Sub-trochanteric Fractures;

2.Inter-trochanteric Fractures;

3.Nonunions.

Diameter: Φ9.0;Φ10.0; Φ11.0;

Length: 220mm; 240mm; 260mm

Material: Titanium Alloy; Stainless Steel

Matching Locking Bolt: Φ4.8*30mm-Φ4.8*85mm

Matching Lag Screw: Φ6.0*65mm-Φ6.0*1 15mm

Material: Titanium Alloy; Stainless Steel

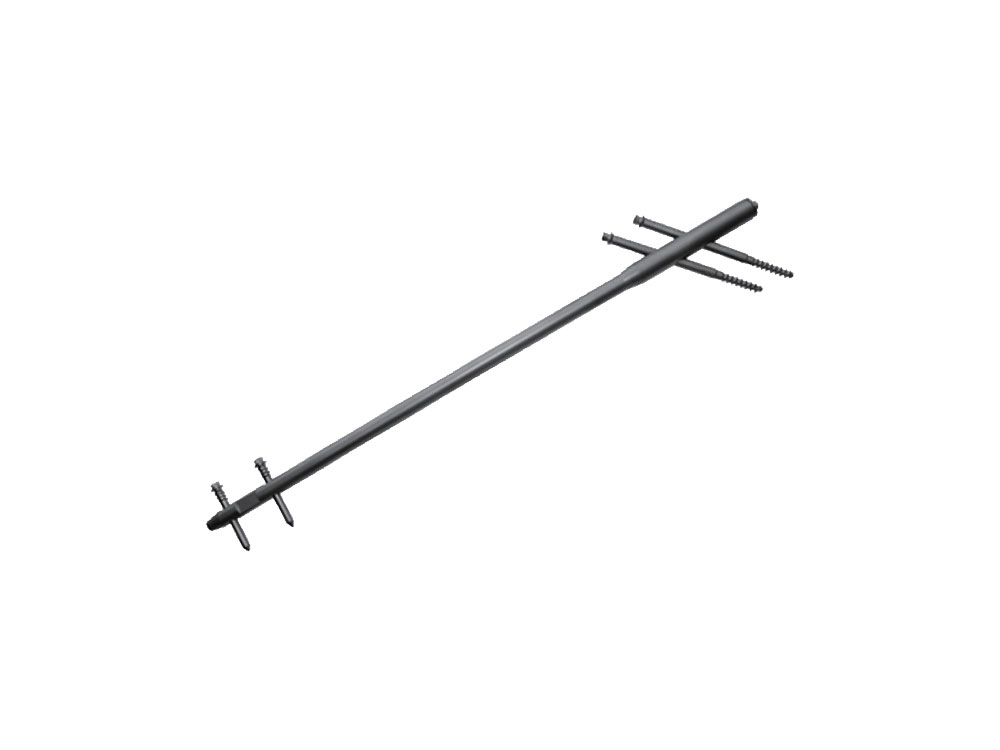

Application: Used in a variety of proximal fractures, such as:

1. Sub-trochanteric fractures;

2. Inter-trochanteric fractures;

3. Nonunions;

4. Femoral shaft fractures.

Diameter: Φ9.0; Φ10.0;Φ11.0;

Length: 300mm-420mm

Material: Titanium Alloy; Stainless Steel

Application: Used for tibial fractures

Diameter: Φ8.5- Φ10.0;

Length: 255mm-375mm

Material: Titanium Alloy

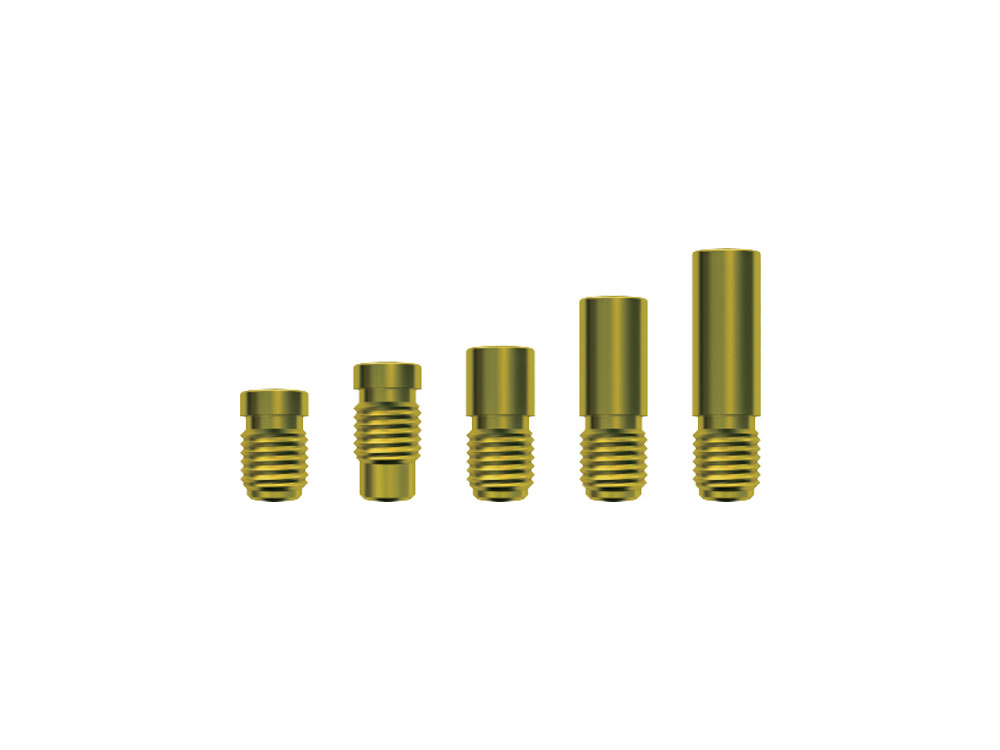

End Cap

Spec: M8*(12-27)

Material: Titanium Alloy

Matching Locking Bolt

Spec: Φ4.4*25mm-Φ4.4*80mm

          Φ4.8*25mm-Φ4.8*90mm

Material: Titanium Alloy

Tibial Interlocking Nail (II)

Application: Used for tibial fractures

Diameter: Φ8.5- Φ10.0;

Length: 255mm-375mm

Material: Titanium Alloy

*Product registration and availability vary by country. For more information on product availability, please contact us here.
