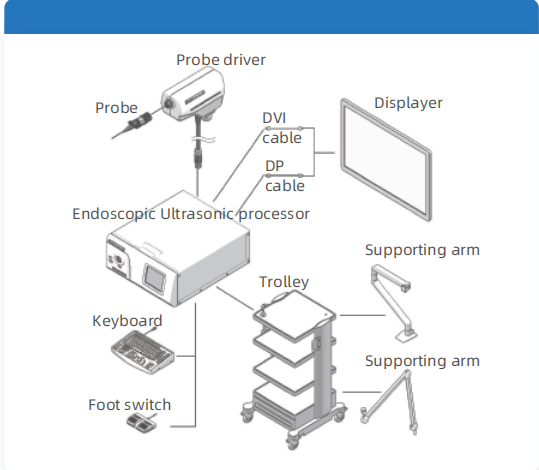

VSONIC 600 Endoscopic Ultrasound System Details
Key Benefits
Miniature Probes
Through the working channel with a of 1.7mm/2.0mm/2.8mm or more.
High-resolution ultrasound imaging
12 MHz , 20 MHz ,30MHz available
Easy to connect to HIS system
Specifications
Display Mode | B-mode |
Scanning method | Mechanical radial scanning |
Scanning direction | 360° circumferential, in perpendicular direction with respect to probe insertion direction |
Ultrasonic frequency | 12/20/30MHz |
Working length | 2,050mm/2,150 |
Total length | 2,140mm |
Insertion tube | 2.5mm/1.7mm/1.4mm |
Maximum diameter | 2.5mm |
Compatible scope | 2.8/2.0/1.7mm or more |
Contact method for ROI | Direct Contact Method |
*Product registration and availability vary by country. For more information on product availability, please contact us here.
