Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B
Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B Details
Panoramic 360° ultrasound view
The mechanical radial scanning probes featured with 360˚
circumferential scanning direction, provide a panoramic ultrasonic view for precise examination of tissue layers.
High resolution ultrasound imaging
Wideband high-frequency ultrasound images and low-noise signal processing technologies make the better resolution and detecting depth possible.
VsonicPro Mini Probes
• Easy endoscopic ultrasonography during routine examinations.
• Multi-frequency probes provide different choices for ultrasound imaging.
• Compatible with any scopes with the ID of working channel from 1.7mm or more.
Specification
MODEL | 2020B | 2017C |
Ultrasonic Frequency | 20MHz | 20MHz |
Display Mode | B-mode | |
Scanning method | Mechanical radial scanning | |
Scanning direction | 360° circumferential, in perpendicular direction withrespect to probe insertion direction | |
Working length | 2,050 mm | 2,150 mm |
Total length | 2,140 mm | 2,240 mm |
Insertion tube | 1.7mm | 1.4 mm |
Maximum diameter | 1.7mm | 1.4 mm |
Compatible scope | ≥2.0 mm | ≥1.7 mm |
Light 680 Xenon Light Source, Smart View 680 VideoProcessor, powered with the high resolution 600G series gastroscopes with the OD from 5.6-9.9mm and 600I series colonoscopes with the OD from 9.0-13.2mm.
HD and HR images are achieved through the wide range of image latitude, spatial frequency response, low noise color reproduction by high-speed image signal transmission,image enhancement algorithms and uniform illumination with the brightness auto-adjustment etc.
Vsonic 600 B upgrades the system software from Version 1 (Vsonic 600) to Version 2.

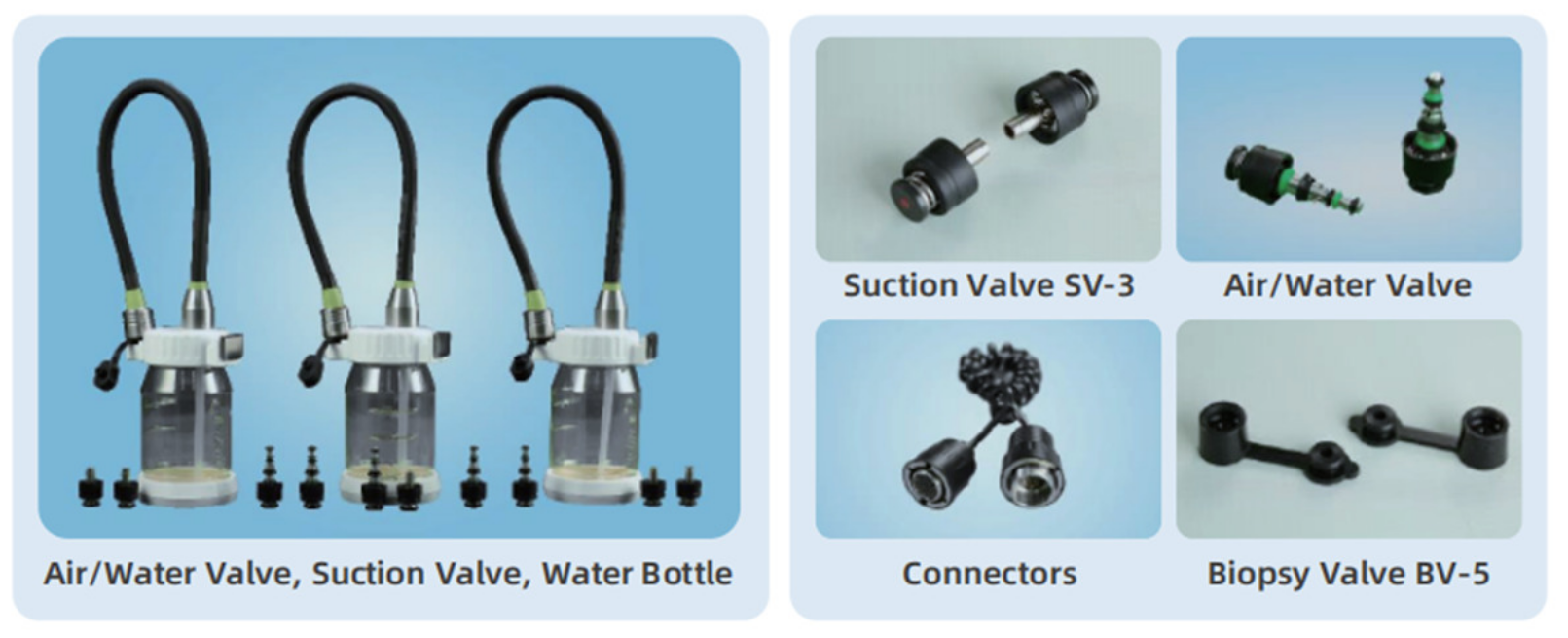

Accessories
*Product registration and availability vary by country. For more information on product availability, please contact us here.
